Overview - Bumper Cover, Attachments

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

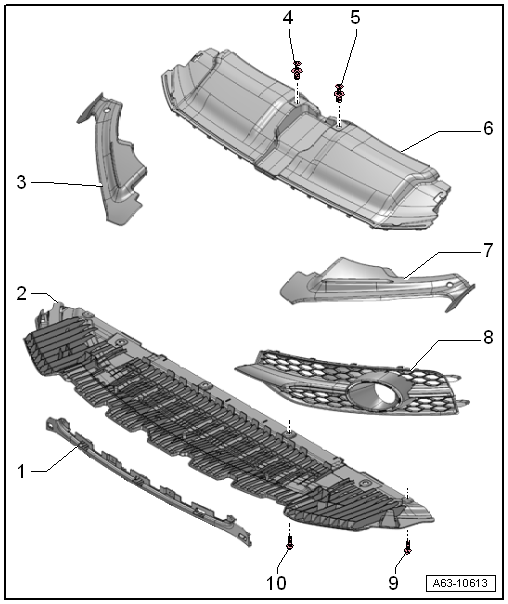

Fig 1: Identifying Bumper Cover Overview - Attachments

Courtesy of AUDI OF AMERICA, LLC

Spoiler Attachment
- Removing and installing. Refer to SPOILER ATTACHMENT, REMOVING AND INSTALLING .
Bumper Cover End Plate
- Removing and installing. Refer to ATTACHMENTS, REMOVING AND INSTALLING .
Right headlamp cover
- Removing and installing. Refer to HEADLAMP COVER, REMOVING AND INSTALLING .
Expanding Clip
Expanding clip
Lock Carrier Cover
- Removing and installing. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .
Left headlamp cover
- Removing and installing. Refer to HEADLAMP COVER, REMOVING AND INSTALLING .
Air Intake Grille
- There are different versions.
- Removing and installing. Refer to ATTACHMENTS, REMOVING AND INSTALLING .
Bolt
- 2.1 Nm
- Quantity: 2
Bolt
- 5 Nm
- Quantity: 4
