Connecting Brace, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

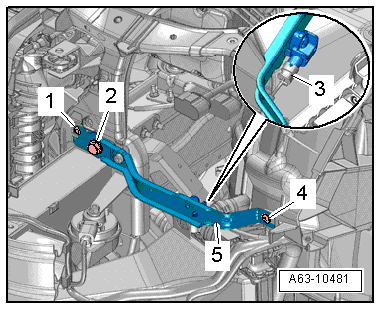

-- Remove the bumper cover mount. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, VEHICLES THROUGH MY 2014 or BUMPER COVER MOUNT, REMOVING AND INSTALLING, VEHICLES FROM MY 2015 .
-- Remove the connector -3- to the front Airbag Crash Sensor while observing the safety precautions. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
-- Drill out the rivet head -1- and strike the rivet shaft.
-- Loosen the bolt -4-, remove the bolt -2- and remove the connecting brace -5-.
