Spoiler Lower Section, Removing And Installing, Audi S7: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

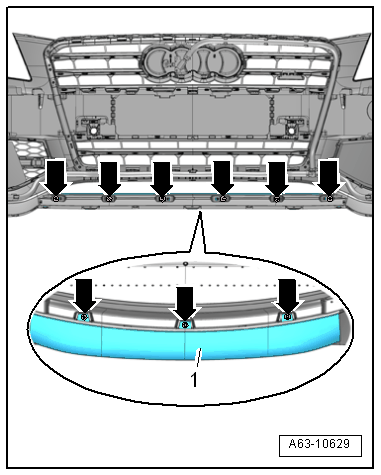

Fig 1: Identifying Bolts
GWWA63-10629Courtesy of AUDI OF AMERICA, LLC

-- Remove the front bumper cover. Refer to REMOVING .

-- Remove the bolts -arrows-.

-- Remove spoiler lower part -1- on the outside starting at the bumper -arrow-.

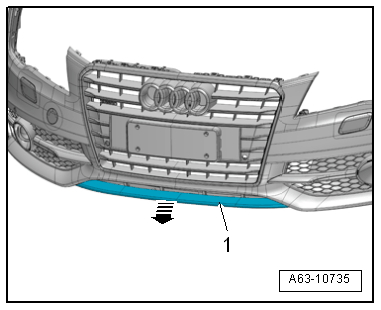

Fig 2: Identifying Spoiler Lower Part
GWWA63-10735Courtesy of AUDI OF AMERICA, LLC
