Spoiler Lower Section Mount, Removing And Installing, Audi RS7: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

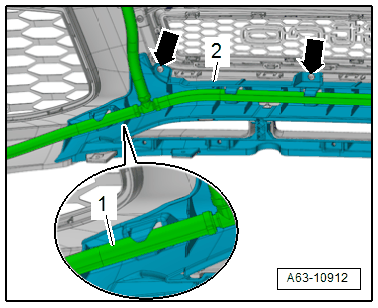

Fig 1: Identifying Windshield Washer Fluid Hose, Mount And Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the spoiler lower section. Refer to Removing .

-- Free up the windshield washer fluid hose -1-.

-- Remove the bolts -arrows-.

-- Remove the mount -2- to the rear.
