Side Air Intake Trim, Removing And Installing, Audi RS7: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

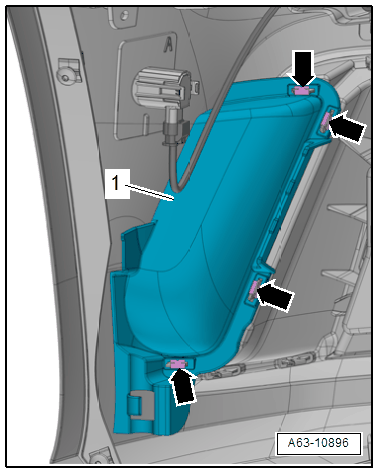

Fig 1: Identifying Cover And Clips

Courtesy of AUDI OF AMERICA, LLC

-- Remove the front bumper cover. Refer to Removing .

-- Carefully remove the clips -arrows- from the guide tab with a screwdriver.

-- Remove the cover -1- from the bumper cover.

-- Carefully remove the clips -arrows- from the guide tab with a screwdriver.

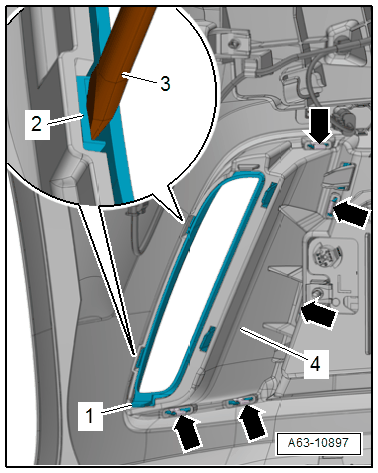

Fig 2: Identifying Clips And Locking Tab

Courtesy of AUDI OF AMERICA, LLC

-- Release the locking tab -2- with a screwdriver -3- and remove the trim -1- forward from the bumper cover -4-.
