Reinforcement Brace, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

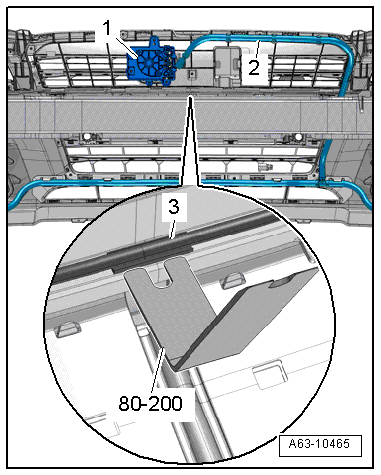

Fig 1: Identifying Pry Lever 80-200

Courtesy of AUDI OF AMERICA, LLC

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- If equipped, remove the mount -1- for the Night Vision System Camera -R212- and free up the washer fluid hose -2-. Refer to Night Vision System Camera -R212- MOUNT, REMOVING AND INSTALLING .

-- Free up the wiring harness -3- using Pry Lever 80-200.

-- Remove the bolts -2 and 3-.

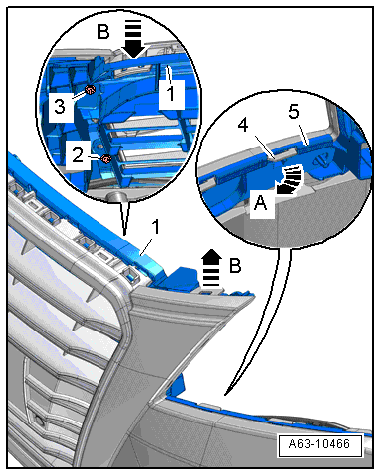

Fig 2: Identifying Tab And Left Support

Courtesy of AUDI OF AMERICA, LLC

-- Release the tab -4- and remove the left support -5- -arrow A-.

-- Release the tabs -arrows B- and remove the reinforcement brace -1- to the rear.
