Molded Foam Piece, Removing And Installing, Audi RS7: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front bumper cover. Refer to Removing .

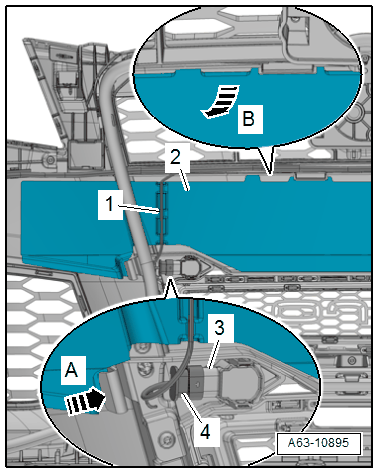

-- If equipped, pull and release the retainer -3- and disconnect the connector -4-.
-- Free up the wire -1-.
-- Release the locking tab -arrow A- and disengage the molded foam part -2- by moving it in the direction of -arrow B-.
-- Remove the molded foam part.
