Molded Foam Piece, Removing And Installing, Audi A7/S7 Through MY 2014: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

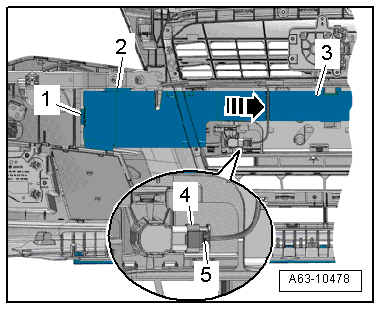

-- Remove the front bumper cover. Refer to Removing .
-- Unlock the retainer -5- and disconnect the connector -4- (if equipped).
-- Free up the wire -arrow-.
-- Remove the molded foam part -3- from the brackets -1 and 2-.
