Molded Foam Piece, Removing And Installing, Audi A7/S7 From MY 2015: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

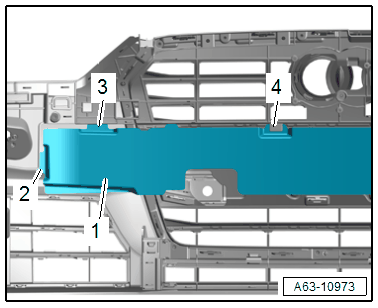

Fig 1: Identifying Molded Foam Piece And Brackets

Courtesy of AUDI OF AMERICA, LLC

-- Remove the front bumper cover. Refer to Removing .

-- Remove the molded foam piece -1- from the brackets -2, 3 and 4-.
