Headlamp Cover, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

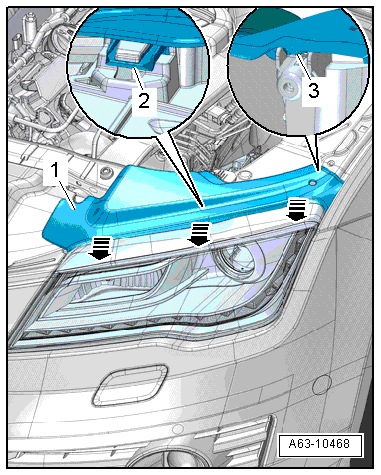

Fig 1: Identifying Headlamp Cover And Tabs
GWWA63-10468Courtesy of AUDI OF AMERICA, LLC

-- Pull the headlamp cover -1- forward -arrows-. While doing this, the tabs -2 and 3- will detach.
