Headlamp Cover, Removing And Installing: Installing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
Install in reverse order of removal. Note the following:

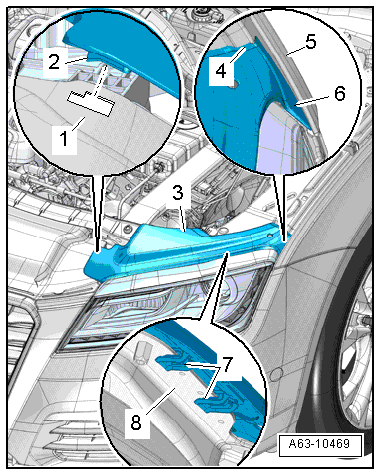

-- Mount the cover -3- on the headlamp and on the lock carrier cover -1-.
- The mounts -2 and 7- must fit into the guides on the lock carrier cover and body -8-.
- The sealing lip -4- may not slide under the fender -5-. If necessary, push the seal -6- behind the fender.
-- Push the cover until it until it clicks into place.
