Front Bumper Cover Mount, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

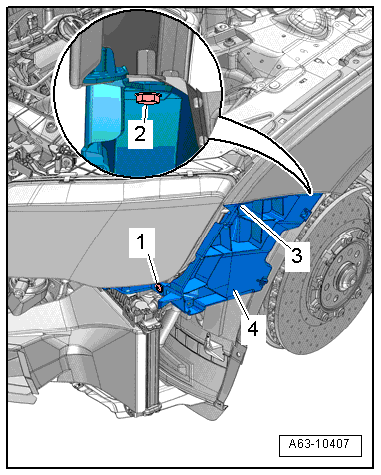

Fig 1: Identifying Front Bumper Cover Mount And Bolts
GWWA63-10407Courtesy of AUDI OF AMERICA, LLC

-- Remove the front bumper cover. Refer to Removing .

-- Loosen the bolt -1- three turns.

-- Remove the bolts -2 and 3- and the mount -4- from the front bumper cover mount.
