Center Reinforcement Brace, Removing And Installing, Audi RS7: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

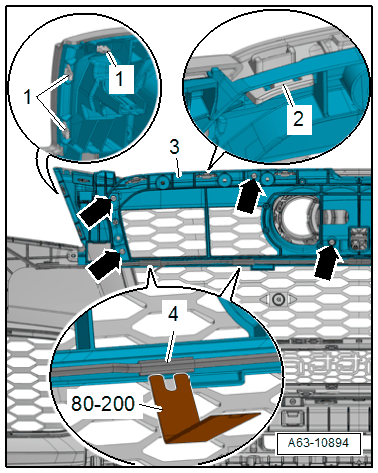

Fig 1: Identifying Pry Lever 80-200

Courtesy of AUDI OF AMERICA, LLC

-- Remove the side reinforcement brace. Refer to SIDE REINFORCEMENT BRACE, REMOVING AND INSTALLING, AUDI RS7 .

-- Free up the wiring harness -4- using Pry Lever 80-200.

-- Carefully remove the clips -1- from the guide tab with a screwdriver.

-- If equipped, remove the mount -1- for the Night Vision System Camera -R212- and free up the washer fluid hose. Refer to Night Vision System Camera -R212- MOUNT, REMOVING AND INSTALLING .

-- Remove the bolts -arrows-.

-- Release the tabs -2- and remove the reinforcement brace -3- to the rear.
