Bumper Cover End Plate, Removing And Installing, Audi A7/S7: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

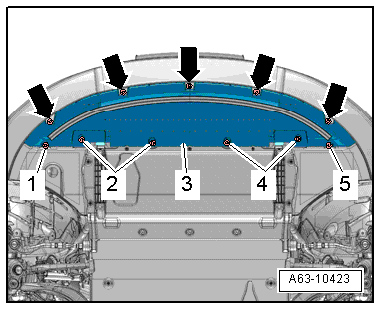

Fig 1: Identifying Front Bumper Cover End Plate And Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1, 2, 4 and 5- and -arrows-.

-- Remove the front bumper cover end plate -3- to the rear.
