Air Intake Grille, Removing And Installing, Audi RS7: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

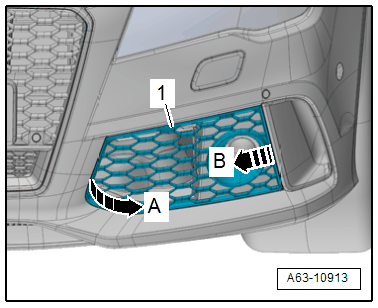

Fig 1: Identifying Air Intake Grille
GWWA63-10913Courtesy of AUDI OF AMERICA, LLC

-- Release the air intake grille -1- on the bumper cover -arrow A- and remove in the direction of -arrow B- from the bumper cover.

NOTE: If the air intake grille cannot be removed as described, then the front bumper cover must be removed. Refer to Removing .
