Air Intake Grille, Removing And Installing, Audi A7/S7 Through MY 2014: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

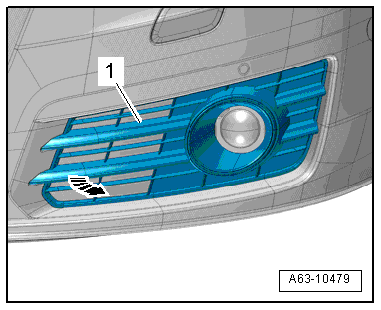

Fig 1: Identifying Air Intake Grille
GWWA63-10479Courtesy of AUDI OF AMERICA, LLC

-- Remove the air intake grille -1- from the bumper cover -arrow-.
