Signal Horn Bracket
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

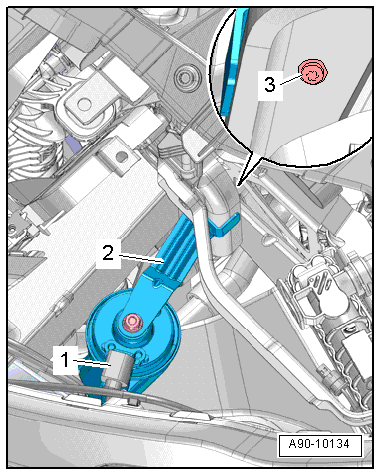

Removal
-- Remove the headlamp housing: HID headlamp, refer to HEADLAMP HOUSING , LED headlamp, refer to HEADLAMP HOUSING .
-- Disconnect the electrical connector -1-.
-- Remove bolt -3-.
-- Remove the bracket -2- and the horn.
Installation
- Tightening specification, refer to SIGNAL HORNS OVERVIEW .
Install in reverse order of removal, observing the following:
-- Install the headlamp housing: HID headlamp, refer to HEADLAMP HOUSING , LED headlamp, refer to HEADLAMP HOUSING .
