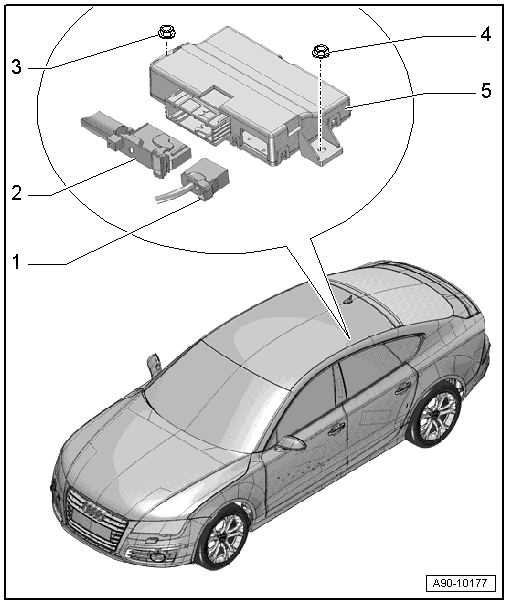

Data Bus On Board Diagnostic Interface -J533- Overview
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
- Fiber Optic Cable Connector
- Attach with the Cable connector protective cap VAS 6223/9.
- Electrical Connector
- For the data bus on board diagnostic interface.
- Nut
- 2 Nm
- Nut
- 2 Nm
- Data Bus On Board Diagnostic Interface -J533-
- Removing and installing, refer to DATA BUS ON BOARD DIAGNOSTIC INTERFACE -J533- .
- Multi-pin connector pin assignment, refer to DATA BUS ON BOARD DIAGNOSTIC INTERFACE, MULTI-PIN CONNECTOR ASSIGNMENT .
