Steering Column, Handling And Transporting, Manual

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Audi S7, 2015 Audi A7 Quattro, 2014 Audi S7, 2014 Audi A7 Quattro, and 2013 Audi S7. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

The correct handling of the steering column must always be observed.
Incorrect handling of steering column may cause damage to steering column and therefore lead to a safety risk.

Correct Handling and Transport of Steering Column

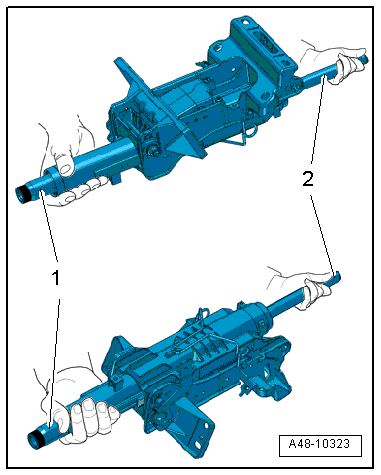

Fig 1: Identifying Manual Steering Column Handling & Transporting

Courtesy of AUDI OF AMERICA, LLC

Wearing gloves, hold the steering column with both hands and remove it from the shipping container.
Hold the steering column by the upper column tube -1- and near the upper universal joint -2- as illustrated.

Incorrect Handling of Steering Column

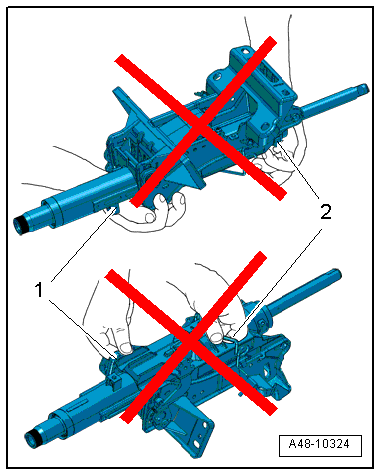

Fig 2: Identifying Incorrect Handling Of Steering Column

Courtesy of AUDI OF AMERICA, LLC

Transporting at the following components leads to pre-damage to steering column:

Release handle
Weight balancing springs

A steering column that has fallen onto a hard surface or shows signs of damage must not be installed in the vehicle.
Do not lay the steering column on the splines.
The splines must not get compressed.
