Suspension Strut, Servicing, Coil Spring Shock Absorber: Notes
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Audi S7, 2015 Audi A7 Quattro, 2014 Audi S7, 2014 Audi A7 Quattro, and 2013 Audi S7. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Spring Compressor Kit - Spring Tensioner VAG1752/1
- Spring Compressor Kit - Spring Retainer w/Inserts VAG1752/6
- Torque Wrench 1332 40-200Nm VAG1332
- Shock Absorber Set T10001
Overview
- Nut
- 50 Nm
- Always replace if removed
- Shock Absorber Mount
- Washer
- Upper Spring Plate with Spring Support
- Coil Spring
- Spring
- Protective Sleeve
- Protective Cap
- Lower Spring Support
- Lower Spring Plate
- Shock Absorber

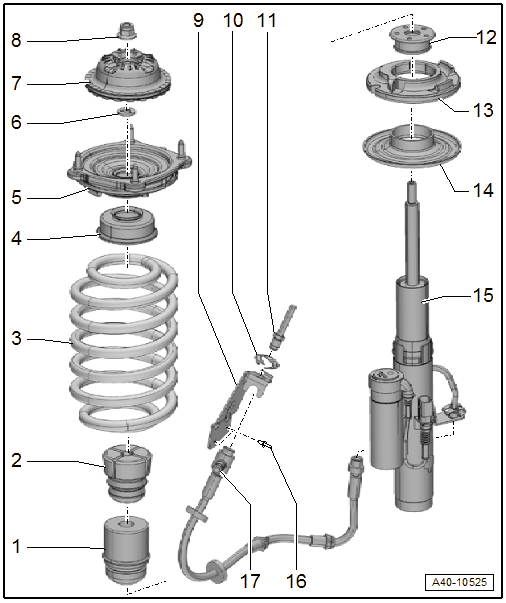

Shock Absorber with Dynamic Ride Control (DRC) System
- Protective Sleeve
- Stop Buffer
- Coil Spring
- Base Plate
- Upper Spring Plate with Spring Support
- Washer
- Shock Absorber Mount
- Nut
- 50 Nm
- Always replace if removed
- Bracket
- Spring
- Replace if damaged.
- Bolt
- 14 Nm
- Protective Cap
- Lower Spring Support
- Lower Spring Plate
- Shock Absorber
- For the Dynamic Ride Control (DRC) system
- Rivet
- Suction/Fill Valve with Hose Line
- Make sure not under tension when installing
