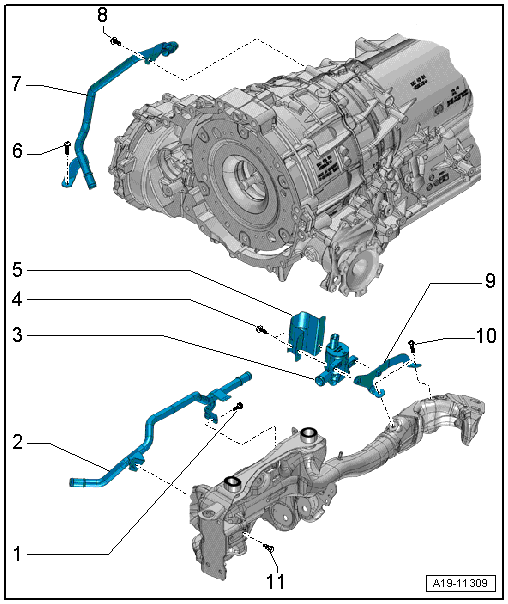

Coolant Pipes on the 8-Speed Automatic Transmission 0BK
WARNING: This page is about a different car, the 2015 Audi A7 Quattro, 2014 Audi A7 Quattro, 2013 Audi A7, and 2012 Audi A7. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 22 Nm
- Lower Left Coolant Pipe
- Removing and installing, refer to LOWER LEFT COOLANT PIPE, REMOVING AND INSTALLING .
- Transmission Fluid Cooling Valve -N509-
- Removing and installing, refer to COOLANT VALVE, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Heat Shield
- Bolt
- 9 Nm
- Right Coolant Pipe on the Transmission
- Removing and installing, refer to RIGHT COOLANT PIPE ON TRANSMISSION, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Bracket
- For Transmission Fluid Cooling Valve -N509-
- Bolt
- 9 Nm
- Bolt
- 22 Nm
