Reducing Agent Injector -N474-, Removing And Installing: Installing

WARNING: This page is about a different car, the 2015 Audi A7 Quattro and 2014 Audi A7 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

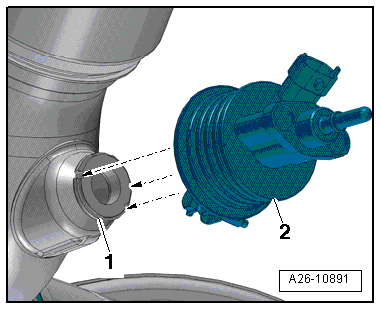

Fig 1: Identifying Reducing Agent Injector -N474- -2- And Front Exhaust Pipe -1-

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal. Note the following:

NOTE:

Replace the seal and retaining clamp.

Installation position: The tabs in the Reducing Agent Injector -N474- -2- must be inserted in the appropriate mounts in the front exhaust pipe -1-.

-- Adapting adaptation value after draining reducing agent or replacing components, refer to SCR-SYSTEM ADAPTATION VALUE, ADAPTING .
