Rear Wheel Housing Liner, Removing And Installing, AUDI A7/S7: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

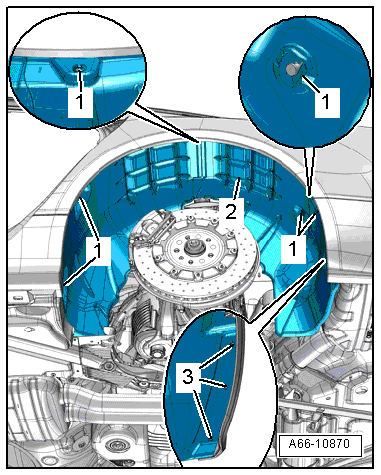

Fig 1: Rear Wheel Housing Liner - Audi A7/S7

Courtesy of AUDI OF AMERICA, LLC

Rear wheel removed. Refer to Wheels, Tires, Wheel Alignment .

-- Remove the bolts -3-.

-- Remove the clip -1- from the wheel housing liner -2-.

-- To remove the clips -3-, unlock the release lever -2- with needle nose pliers in direction of -arrow A- and push it off the pin -1- in direction of -arrow B-.

Fig 2: Identifying Clips, Release Lever & Pin

Courtesy of AUDI OF AMERICA, LLC

-- The Locking Pliers VAS6199 may also be alternatively used to release the clips.

-- Remove the wheel housing liner.
