Driveshaft Cover, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

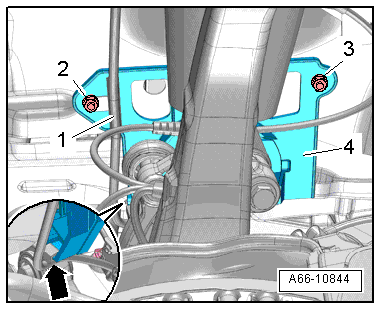

Fig 1: Identifying Driveshaft Cover
GWWA66-10844Courtesy of AUDI OF AMERICA, LLC

-- Push the front wheel to the left.

-- Remove the nut -2-.

-- Left side of the vehicle: free up the electric wire -1- -arrow-.

-- Push the front wheel to the right.

-- Remove the nut -3-.

-- Pull the driveshaft cover -4- off the threaded pins and remove it.
