Rear Underbody Panel, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

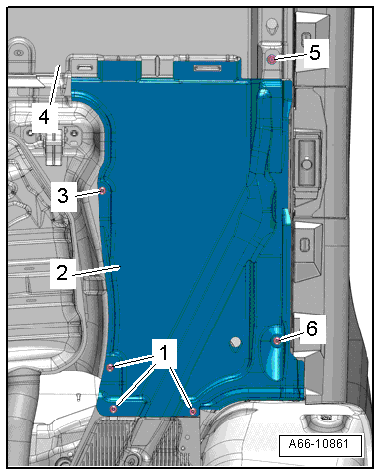

Fig 1: Rear Underbody Panel

Courtesy of AUDI OF AMERICA, LLC

Left side of the vehicle:

-- Remove the bolts -1, 3 and 6-.

-- Remove the nut -5- from the center cover -4-.

-- Remove the rear cover -2- to the rear.

-- Remove the rear cover.

Right side of vehicle:

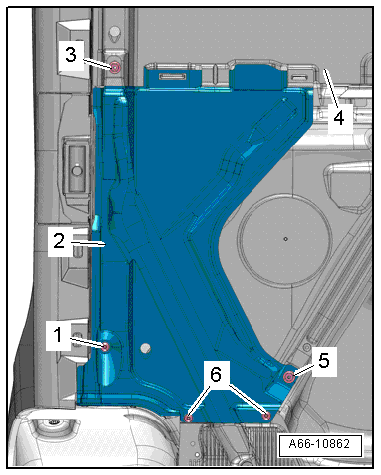

Fig 2: Rear Underbody Panel

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut -5- and bolts -1 and 6-.

-- Remove the nut -3- from the center cover -4-.

-- Remove the rear cover -2- to the rear.

-- Remove the rear cover.
