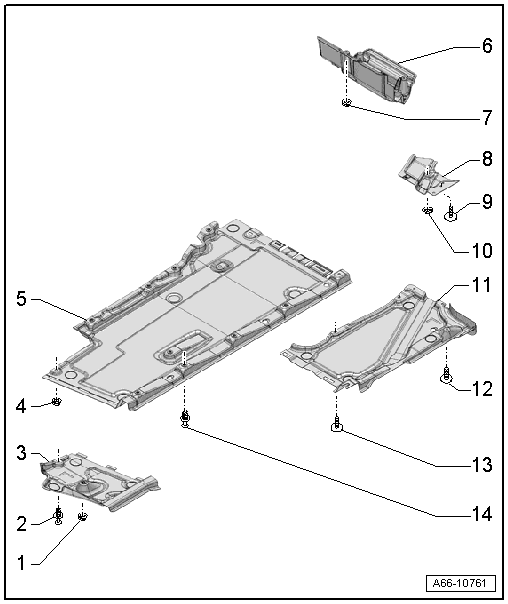

Overview - Underbody Panels
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
- Nut
- 2.1 Nm
- With retainer
- Expanding clip
- Front Vehicle Underbody Cover
- Removing and installing. Refer to FRONT UNDERBODY PANEL, REMOVING AND INSTALLING .
- Nut
- 2.1 Nm
- With retainer
- Quantity: 10
- Center Vehicle Underbody Cover
- Removing and installing. Refer to CENTER UNDERBODY PANEL, REMOVING AND INSTALLING .
- Front Cover for the Spare Wheel Well
- Removing and installing. Refer to FRONT UNDERBODY PANEL FOR SPARE TIRE WELL, REMOVING AND INSTALLING .
- Nut
- 2.1 Nm
- Quantity: 5
- Stone Chip Protective Molding
- Removing and installing. Refer to STONE CHIP PROTECTIVE MOLDING, REMOVING AND INSTALLING .
- Bolt
- 2.1 Nm
- Clip
- Rear Vehicle Underbody Cover
- Removing and installing. Refer to REAR UNDERBODY PANEL, REMOVING AND INSTALLING .
- Bolt
- 3.5 Nm
- Screw
- 2.1 Nm
- Quantity: 4
- Expanding Clip
