Rear Spoiler Height Adjustment

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

-- Extend the spoiler.

-- Remove the water drain grille. Refer to DRIVE UNIT, REMOVING AND INSTALLING, WATER DRAIN GRILLE .

-- Remove the bolts -arrows- on the adjuster -1-.

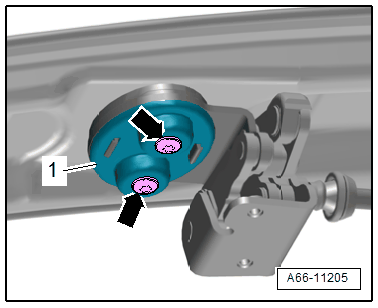

Fig 1: Adjuster Bolts -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Adjust the adjusters -arrow- accordingly with a 6 mm hex socket wrench.

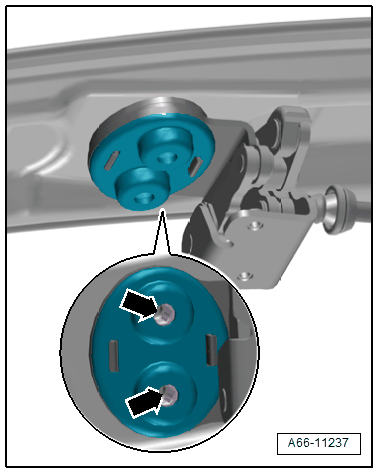

Fig 2: Adjusters -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Check adjustment and gap dimensions. Repeat adjustment if necessary.

-- Install the bolts and tighten to the specification. Refer to -item 16- :Bolt.

Fig 3: Adjuster Bolts -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Install the water drain grille.
