Gap Dimensions

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

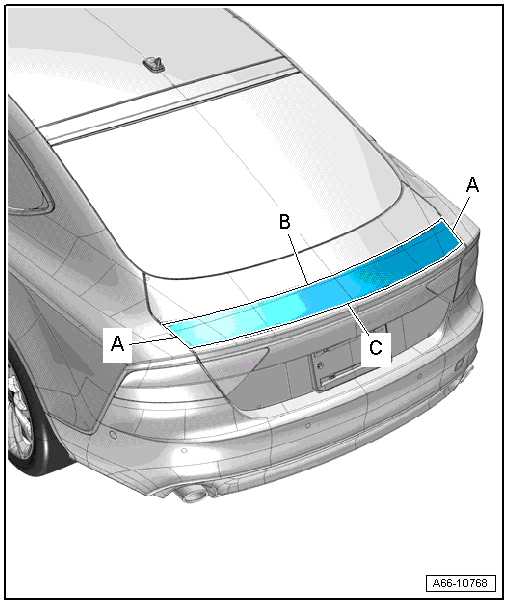

Fig 1: Spoiler Adjusting
GWWA66-10768Courtesy of AUDI OF AMERICA, LLC
  1. A -

    Left Upper Rear Side Panel to the Rear Spoiler

    • Gap dimension = 3.9 mm
  2. B -

    Rear Lid to Rear Spoiler

    • Gap dimension = 2.0 mm
  3. C -

    Rear Lid Mount to the Rear Spoiler

    • Gap dimension = 2.3 mm
