Rear Lid Seal Mount, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

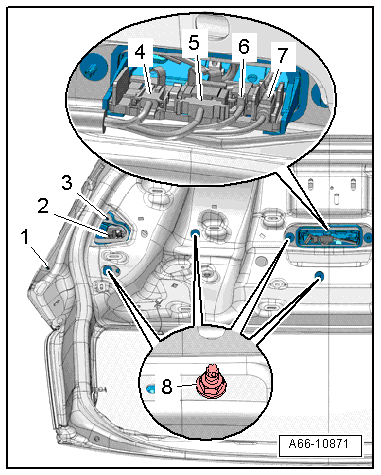

Fig 1: Identifying Rear Lid Seal Mount Assembly

Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear lid trim panel. Refer to LUGGAGE COMPARTMENT TRIM PANELS .

-- Disconnect the connectors -2, 4, 5 and 6- and the antenna connector -7-.

-- Remove the nuts -8- and bolts -1 and 3-.

CAUTION:

Danger of causing damage to the rear lid.

The gas-filled struts for the rear lid will not be loaded enough when the mount is removed. The rear lid will open in a jerking motion.

-- Secure the rear lid with hook -1- so that it cannot open unintentionally.

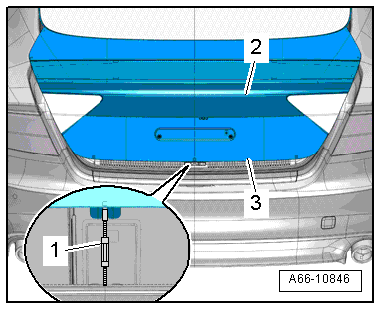

Fig 2: Identifying Rear Lid & Hook

Courtesy of AUDI OF AMERICA, LLC

-- Remove the mount -2- from the rear lid -3- and lay it down on a soft surface.

-- If the mount is being replaced:

Remove the inner tail lamps. Refer to [For engine(s) CTUA,CEUC,CRDB,CGXB,CPNB] Removal and Installation .
Remove the license plate lamps. Refer to [For engine(s) CTUA,CEUC,CRDB,CGXB,CPNB] Removal and Installation .
Remove the Rear Lid Lock Cylinder Unlock Button -F248-
