Mount With Rear Spoiler Drive Unit, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

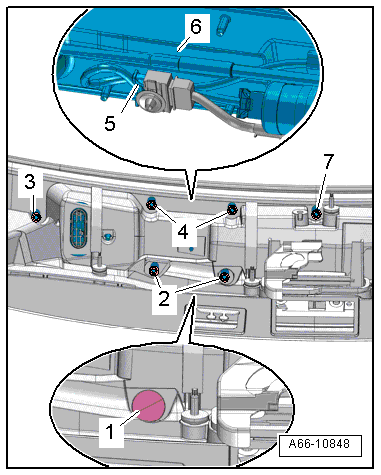

-- Remove the mount from the rear lid. Refer to REAR LID SEAL MOUNT, REMOVING AND INSTALLING .
-- Remove the cap -1-.
-- Remove the nuts -2, 3, 4 and 7-.
-- Lift the mount -6- with the rear spoiler drive just enough so that it is possible to disconnect the connector -5-.
-- Remove the mount with the rear lid drive.
