Drive Unit, Removing And Installing, Water Drain Grille: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
-- Extend the spoiler. Refer to the Owner's Manual.
-- Remove the mount from the rear lid. Refer to REAR LID SEAL MOUNT, REMOVING AND INSTALLING .

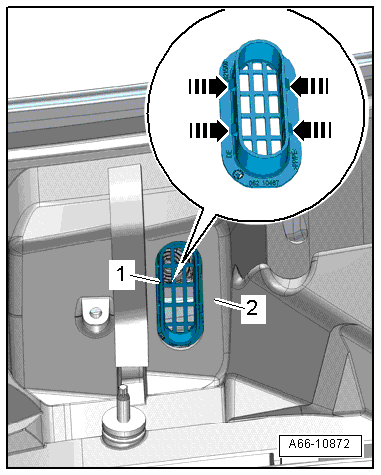

-- Release the tabs -arrows- and remove the water drain grille -1- upward off the drive -2-.
