Cover, Removing And Installing: Installing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

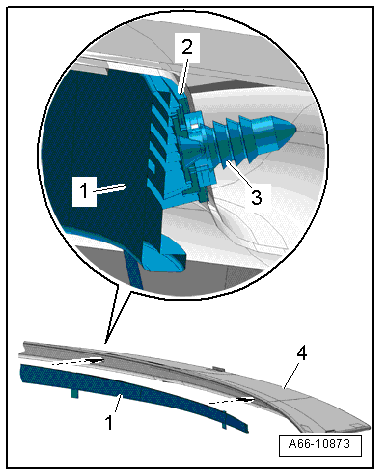

Fig 1: Protector, Spoiler & Securing Tabs

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal. Note the following:

-- Clean the adhesive surface of the spoiler using Cleaning Solution D 009 401 04.

-- Remove the peel-off backing from the tape.

-- Position the protector -1- on the spoiler -4- and push the securing tabs -3- into the mounts -arrows-.

NOTE:

Make sure the foam seal -2- is sitting on top of the securing tab.

-- Press the current protector onto the spoiler over the entire length using the roller 3356.

-- Install the spoiler. Refer to SPOILER, REMOVING AND INSTALLING .
