Rear Spoiler Control Module -J223-, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

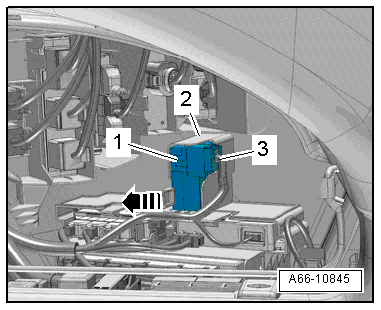

Fig 1: Rear Spoiler Control Module

Courtesy of AUDI OF AMERICA, LLC

-- Remove the cover from the luggage compartment right side trim panel.

-- Disconnect the connector -3-.

-- Release the spring -arrow- and remove the Rear Spoiler Control Module -J223- -item 1- from the frame -2-.
