Overview - Rear Spoiler Control Module

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

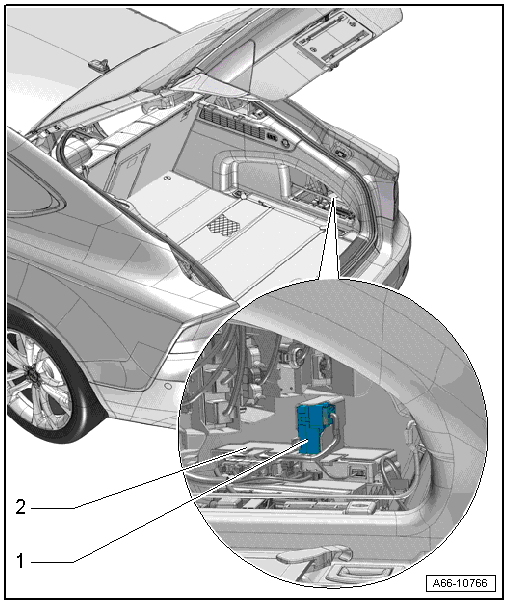

Fig 1: Rear Spoiler Control Module
GWWA66-10766Courtesy of AUDI OF AMERICA, LLC
  1. Rear Spoiler Control Module -J223-
  2. Lower Frame
    • For control modules
