Name Badges, Removing And Installing, QUATTRO Name Badge, Vehicles Through My 2014: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

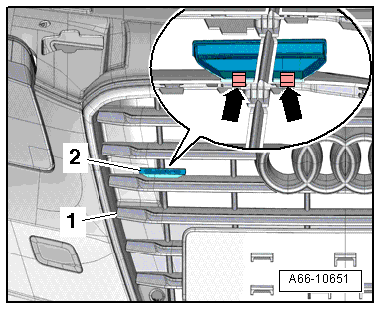

Fig 1: Name Badges - Quattro Name Badge - Vehicles Through MY 2014
GWWA66-10651Courtesy of AUDI OF AMERICA, LLC

-- Remove the lock carrier cover. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .

-- Remove the clips -arrows-.

-- Remove the Quattro name badge -2- from the radiator grille -1-.
