Name Badges, Removing And Installing, QUATTRO Name Badge, Vehicles From My 2015: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

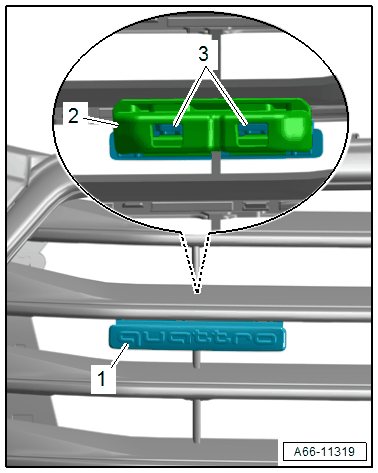

Fig 1: Name Badges - Quattro Name Badge - Vehicles Through MY 2015
GWWA66-11319Courtesy of AUDI OF AMERICA, LLC

-- Remove the radiator grille. Refer to RADIATOR GRILLE, REMOVING AND INSTALLING, AUDI A7/S7 FROM MY 2015 .

-- Release the retainers -3- and remove the retaining strip -2-.

-- Remove the Quattro name plate -1- from the radiator grille.
