Front Emblems, Removing And Installing, AUDI RS7: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

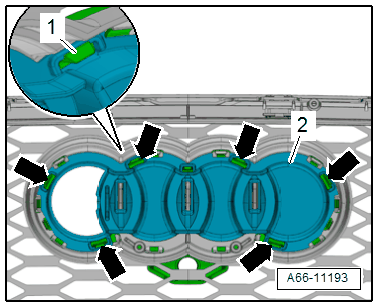

Fig 1: Identifying Front Emblems - Audi RS7

Courtesy of AUDI OF AMERICA, LLC

-- Remove the center reinforcement brace. Refer to CENTER REINFORCEMENT BRACE, REMOVING AND INSTALLING, AUDI RS7 .

-- Release the retaining tab -1- -arrows- and remove the cover -2-.

-- Remove the Audi rings with adapter from the radiator grille.

-- Lift the tab -3- in direction of -arrow- and unlock the tabs -4-.

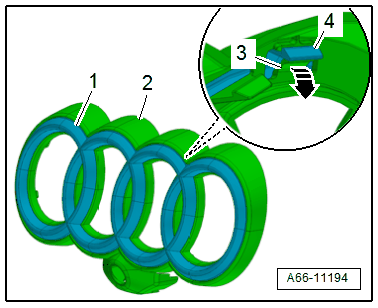

Fig 2: Removing Audi Rings From Adapter

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Audi rings -1- from the adapter -2-.
