Front Emblems, Removing And Installing, AUDI A7/S7: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

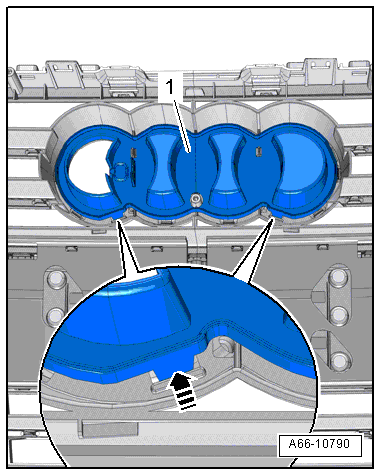

Fig 1: Identifying Front Emblems - Audi A7/S7
GWWA66-10790Courtesy of AUDI OF AMERICA, LLC

-- Remove the radiator grille. Refer to RADIATOR GRILLE, REMOVING AND INSTALLING, AUDI A7/S7 THROUGH MY 2014 .

-- Release the tabs -arrow- and removed the cover -1-.

-- Lift the tab -4- in -direction of arrow- and unlock the tabs -3-.

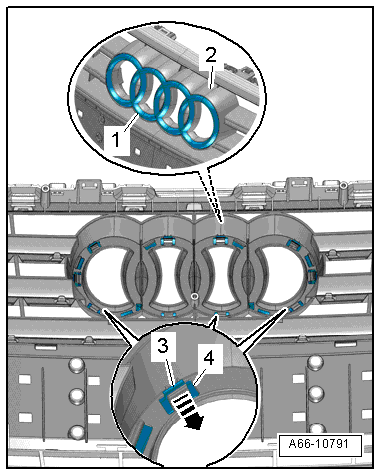

Fig 2: Removing Audi Rings From Radiator Grille
GWWA66-10791Courtesy of AUDI OF AMERICA, LLC

-- Remove the Audi rings -1- from the radiator grille -2-.
