Dimensions - Rear Lid Name Badges And Emblems

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

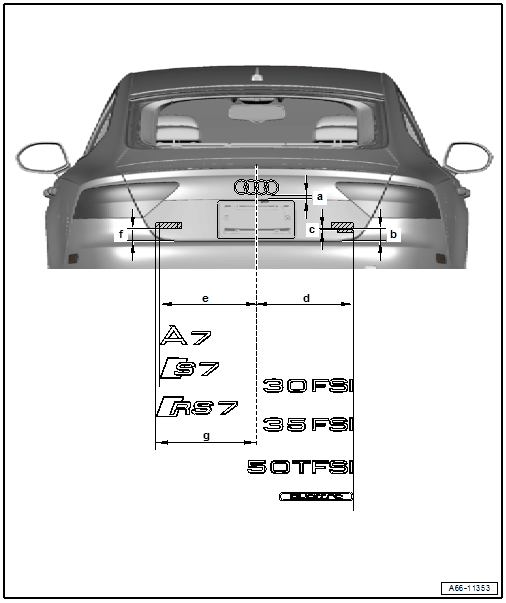

Fig 1: Rear Lid Name Badges & Emblems Location

Courtesy of AUDI OF AMERICA, LLC

Dimension -a- = 17 mm
Dimension -b- = 46 mm.
Dimension -c- = 4 mm
Dimension -d- = 443 mm
Dimension -e- = 451 mm
Dimension -f- = 49 mm
Dimension -g- = 456 mm.

NOTE:

Dimension -g- applies only to RS7

Rear Lid, Market-Specific

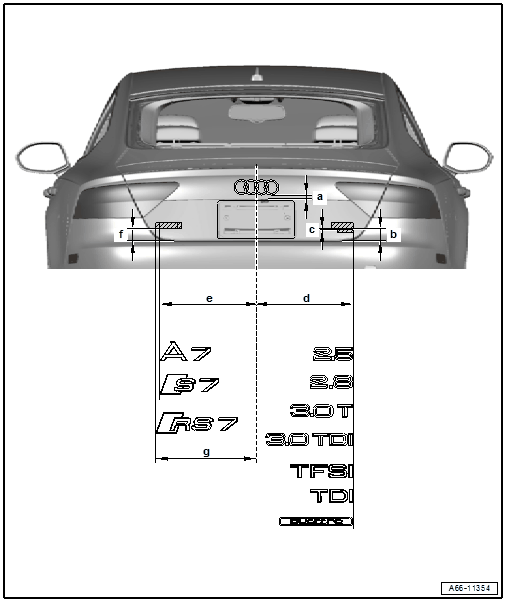

Fig 2: Rear Lid Name Badges & Emblems Location

Courtesy of AUDI OF AMERICA, LLC

Dimension -a- = 17 mm
Dimension -b- = 46 mm.
Dimension -c- = 4 mm
Dimension -d- = 443 mm
Dimension -e- = 451 mm
Dimension -f- = 49 mm
Dimension -g- = 456 mm.

NOTE:

Dimension -g- applies only to RS7
