Dimensions - Name Badges And Emblems On Fender
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

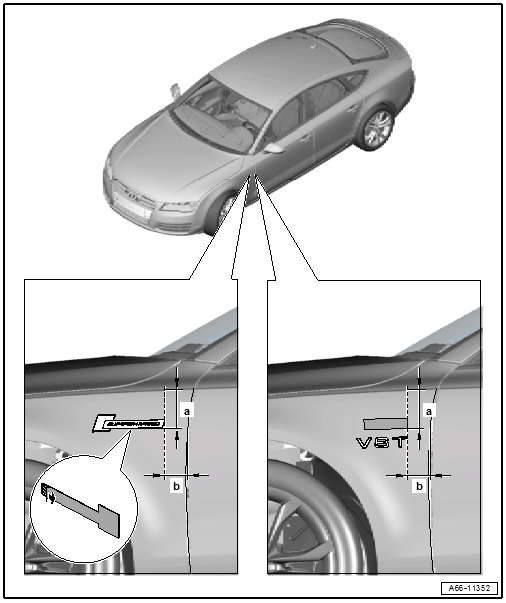

The dimension -a- is measured from the edge (outer radius) of the fender to the lower edge of the name badge. Refer to DIMENSIONS - NAME BADGES AND EMBLEMS ON FENDER => Measure the dimension for the height distance from the outer radius -arrow- outward. .
Lettering Supercharged
- Dimension -a- = 80 mm
- Dimension -b- = 41 mm.
Name Badge V8 T
Dimension -a- = 83 mm
Dimension -b- = 41 mm

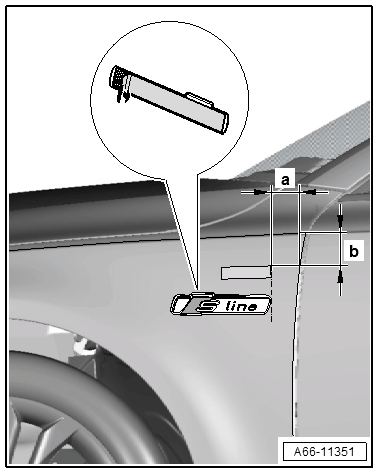

Name Badge S line
NOTE:
The dimension -b- is measured from the edge (outer radius) of the fender to the upper edge of the name badge. Refer to DIMENSIONS - NAME BADGES AND EMBLEMS ON FENDER => Measure the dimension for the height distance from the outer radius -arrow- outward. .
- Dimension -a- = 58 mm
- Dimension -b- = 68 mm
-- Measure the dimension for the height distance from the outer radius -arrow- outward.
