Roof Trim Molding, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
-- Open the front and rear doors.
-- Remove the door seal near the roof trim molding. Refer to OUTER DOOR SEAL, REMOVING AND INSTALLING .

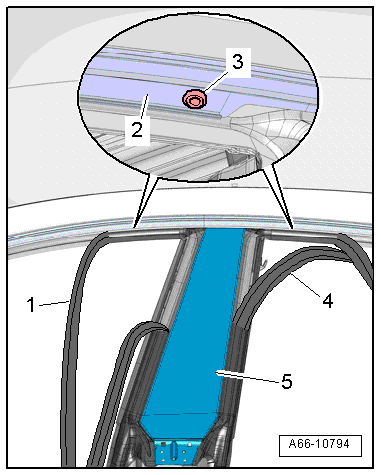

-- Remove the seal -1 and 4- from the roof trim molding as far as the B-pillar trim -5-.
-- Have a second technician hold the roof trim molding -2- to keep it from damaging the paint.
-- Drill out the rivet heads -3- and strike the rivet shaft.
NOTE:
Do not bend the roof trim molding.
The roof trim molding has an opening near the B-pillar trim.

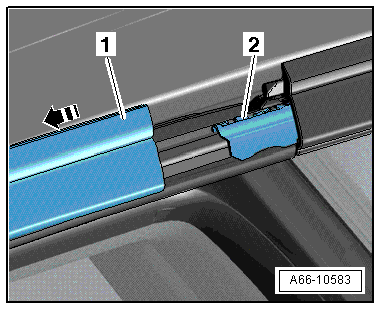

-- Pull the roof trim molding -1- out of the clips -2- in the side window in direction of -arrow-.
-- Remove the roof trim molding.
