Roof Trim Molding, Removing And Installing: Installing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
Install in reverse order of removal. Note the following:

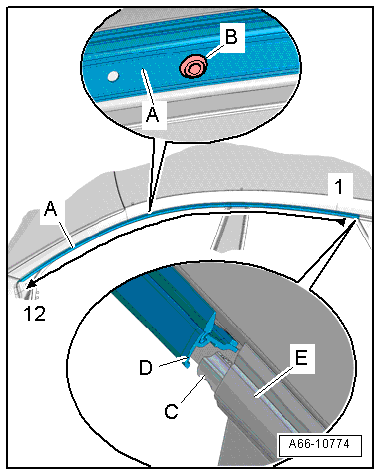

-- Install the roof trim molding -A- into the side window trim molding -E-.
- The clamp -C- must fit correctly into the guide -D-.
- The roof trim molding be touching the end of the side window trim molding.
-- Rivet the roof trim molding with the rivet -B- in the sequence -1 to 12-.

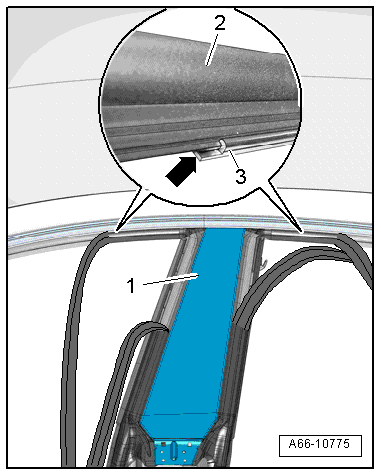

-- Insert the seal -2- in the B-pillar trim -1- starting in the roof trim molding -3-.
- The seal must click into the groove -arrow- and be flush with the roof trim molding.
