Front And Rear Quick Release Mount, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

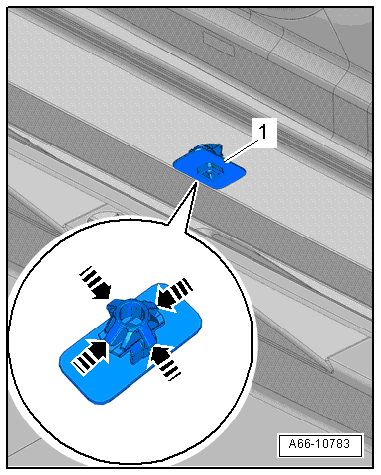

Fig 1: Front And Rear Quick Release Mount

Courtesy of AUDI OF AMERICA, LLC

-- Remove the sill panel trim. Refer to SILL PANEL TRIM, REMOVING AND INSTALLING .

-- Release the tabs -arrows- with a narrow screwdriver.

-- Remove the mount -1- downward.
