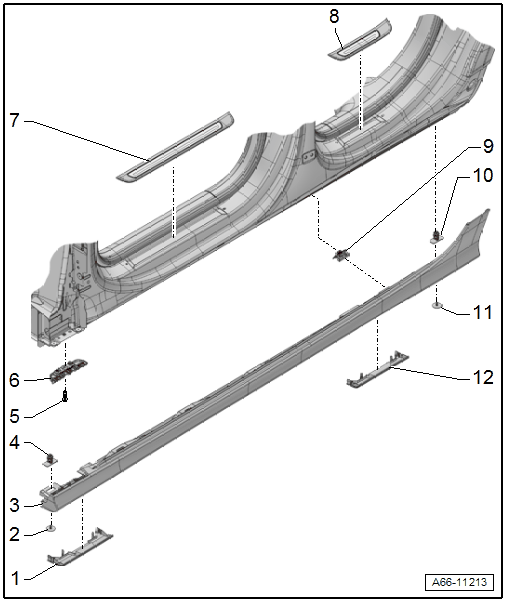

Overview - Sill Panel Trim
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
- Front Cover
- Equipment levels
- For vehicle lift point
- Quick Release
- Quantity: 7
- Sill Panel Trim
- Removing and installing. Refer to SILL PANEL TRIM, REMOVING AND INSTALLING .
- Front Mount
- For the quick release
- Quantity: 3
- Removing and installing. Refer to FRONT AND REAR QUICK RELEASE MOUNT, REMOVING AND INSTALLING .
- Bolt
- 8 Nm
- Front Bracket
- For the sill panel trim
- Removing and installing. Refer to FRONT BRACKET FOR SILL PANEL TRIM, REMOVING AND INSTALLING .
- Front Sill Panel Trim
- There are different versions.
- Removing and installing. Refer to SILL PANEL TRIM, REMOVING AND INSTALLING .
- Rear Sill Panel Trim
- There are different versions.
- Removing and installing. Refer to SILL PANEL TRIM, REMOVING AND INSTALLING .
- Rear Bracket
- For the sill panel trim
- Quantity: 9
- Removing and installing. Refer to REAR BRACKET FOR SILL PANEL TRIM, REMOVING AND INSTALLING .
- Rear Mount
- For the quick release
- Quantity: 4
- Removing and installing. Refer to FRONT AND REAR QUICK RELEASE MOUNT, REMOVING AND INSTALLING .
- Quick Release
- Rear Cover
- For vehicle lift point
