Upper Steering Column Trim Panel, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

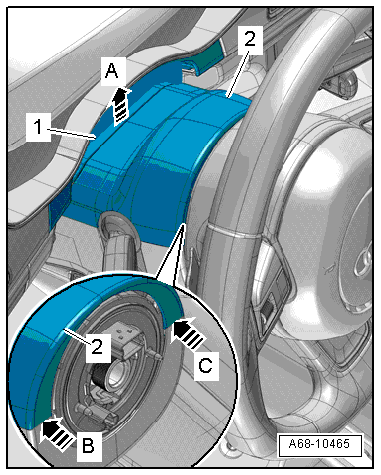

Fig 1: Identifying Cover

Courtesy of AUDI OF AMERICA, LLC

-- Move the steering wheel as far down as possible.

-- Carefully unclip the cover -1- from the top of the steering column switch module -2- using a small flat blade screwdriver -arrow A-.

-- Turn the steering wheel counterclockwise 90° from the straight position.

-- Carefully pry the upper trim off the lower trim using a small flat blade screwdriver -arrow B-.

-- Turn the steering wheel back 180° and repeat the procedure on the opposite side -arrow C-.

-- Disengage the upper steering column switch module trim from the lower trim and remove it.
