Lower Steering Column Trim Panel, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

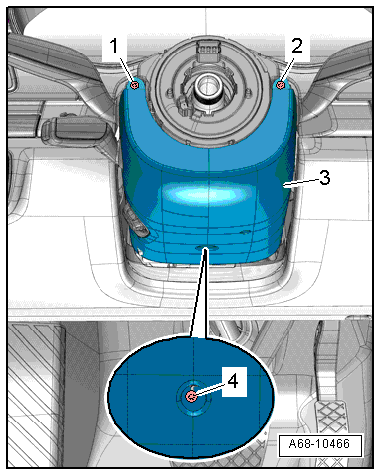

For reasons of clarity, the steering wheel is not shown.
-- Remove the upper steering column switch module trim. Refer to UPPER STEERING COLUMN TRIM PANEL, REMOVING AND INSTALLING .
-- Turn the steering wheel counterclockwise 90° from the straight position.
-- Remove the bolt -1-.
-- Turn steering wheel back 180° and remove screw -2- on the opposite side.
NOTE:
When the bolts -1- and -2- are not accessible, the steering wheel must be removed for further work. Refer to 48 STEERING
.
-- Remove screw -4- and lower steering column switch module trim -3-.
-- Disconnect the connector and unclip the cable holder.
