Instrument Cluster Gap Cover, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

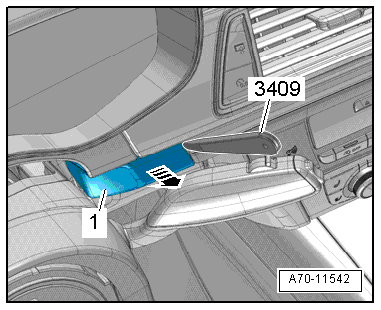

Fig 1: Identifying Instrument Panel Gap Cover And Trim Removal Wedge 3409

Courtesy of AUDI OF AMERICA, LLC

-- Move the steering wheel as far down as possible.

-- Unclip the instrument panel gap cover -1- using the Trim Removal Wedge 3409 -arrow- and remove it.

-- Repeat the process on the opposite side of the gap cover.

-- Remove the bolts -1- and -3-.

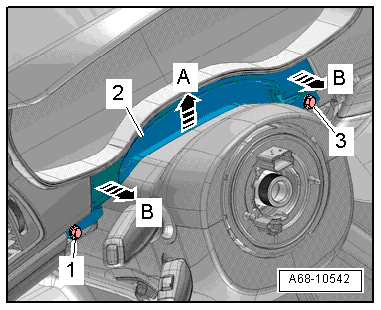

Fig 2: Identifying Bolts And Gap Cover

Courtesy of AUDI OF AMERICA, LLC

-- Carefully unclip the gap cover -2- off the top of the steering column switch module -arrow A-.

-- Unclip the instrument cluster gap cover from the instrument panel using the Trim Removal Wedge 3409 -B arrows-.

-- Remove the cover.
