Glove Compartment Lid, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

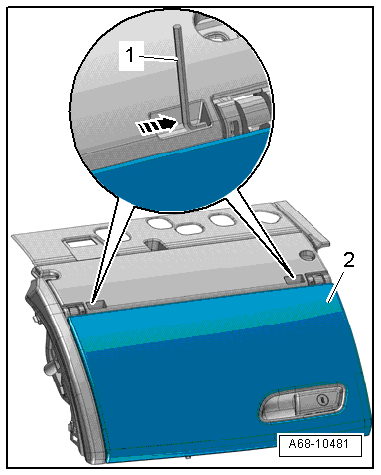

Fig 1: Identifying Glove Compartment Cover

Courtesy of AUDI OF AMERICA, LLC

-- Remove the glove compartment:

GLOVE COMPARTMENT, REMOVING AND INSTALLING .
GLOVE COMPARTMENT, REMOVING AND INSTALLING, WITH KNEE AIRBAG .

-- Remove the hinge pin from the brake component. Refer to GLOVE COMPARTMENT LID BRAKING ELEMENT, REMOVING AND INSTALLING .

-- Set the glove compartment down with the top side on a soft surface.

-- Drive the left and right hinge pins out using a 4 mm hex socket wrench -item 1- (or another suitable tool) -arrow-.

-- Remove glove compartment cover -2- from the glove compartment.
