Glove Compartment Handle, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

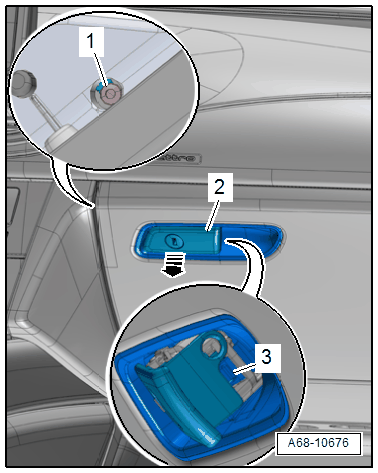

Fig 1: Identifying Glove Compartment Handle

Courtesy of AUDI OF AMERICA, LLC

NOTE: If glove compartment cover does not open, it can be opened via the emergency release. Refer to GLOVE COMPARTMENT LID EMERGENCY RELEASE, OPERATING .

Vehicles with Knee Airbag:

-- Open the glove compartment and remove the bolt -1-.

-- Press the glove compartment handle -2- and release retaining the hook -3- at the side of the glove compartment opener using a screwdriver.

-- Remove the glove compartment opener from the glove compartment cover -arrow-.

Vehicles without Knee Airbags:

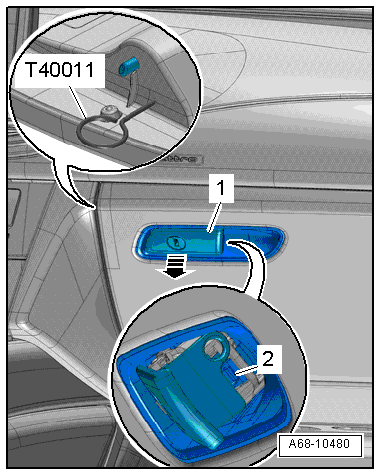

Fig 2: Identifying Glove Compartment Handle

Courtesy of AUDI OF AMERICA, LLC

-- Press the glove compartment handle -1- and release retaining the hook -2- at the side of the glove compartment opener using a screwdriver.

-- Insert the Locking Pin T40011 through an opening on the side of the glove compartment lid and release the hook in the glove compartment handle.

-- Remove the glove compartment opener from the glove compartment cover -arrow-.
