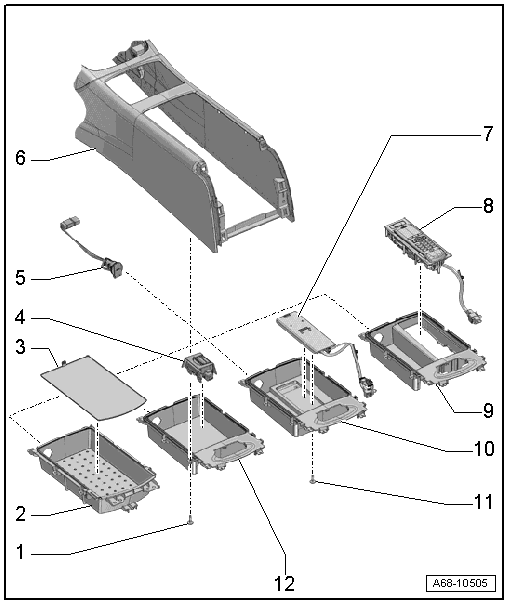

Overview - Center Console, Storage Compartment
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 1.4 Nm
- Quantity: 6
- Storage Compartment
- Vehicles without a center armrest
- Removing and installing. Refer to FRONT CENTER CONSOLE STORAGE COMPARTMENT, REMOVING AND INSTALLING .
- Liner
- External Audio Source Connection -R199-
- Equipment levels
- Removing and installing. Refer to 91 COMMUNICATION .
- 12 V Socket -U5-
- Removing and installing. Refer to REMOVAL AND INSTALLATION .
- Center Console
- Removing and installing. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .
- Telephone Baseplate -R126-
- Equipment levels
- For Cellular Telephone -R54-
- Removing and installing. Refer to TELEPHONE SYSTEM
- Telephone Baseplate -R126-
- Equipment levels
- For Telephone Handset -R37-
- Removing and installing. Refer to TELEPHONE SYSTEM
- Storage Compartment
- For equipment levels with Telephone Baseplate -R126- -item 8-
- Removing and installing. Refer to FRONT CENTER CONSOLE STORAGE COMPARTMENT, REMOVING AND INSTALLING .
- Storage Compartment
- For equipment levels with Telephone Baseplate -R126- -item 7-
- Removing and installing. Refer to FRONT CENTER CONSOLE STORAGE COMPARTMENT, REMOVING AND INSTALLING .
- Bolt
- Tightening specification. Refer toTELEPHONE SYSTEM .
- Storage Compartment
- For equipment levels with CONNECTOR ASSIGNMENTS .
- Removing and installing. Refer to FRONT CENTER CONSOLE STORAGE COMPARTMENT, REMOVING AND INSTALLING .
